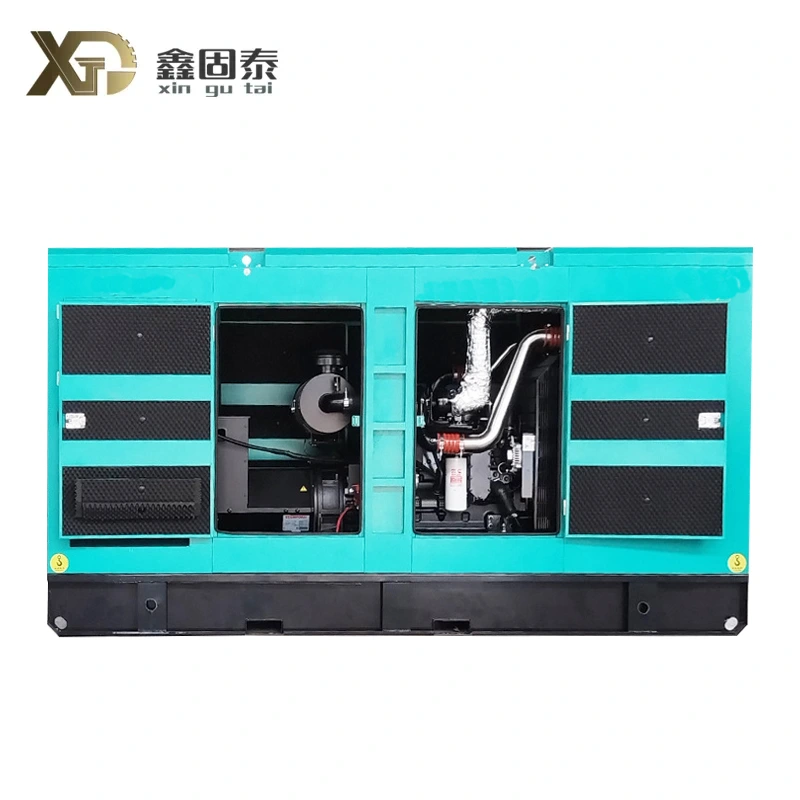

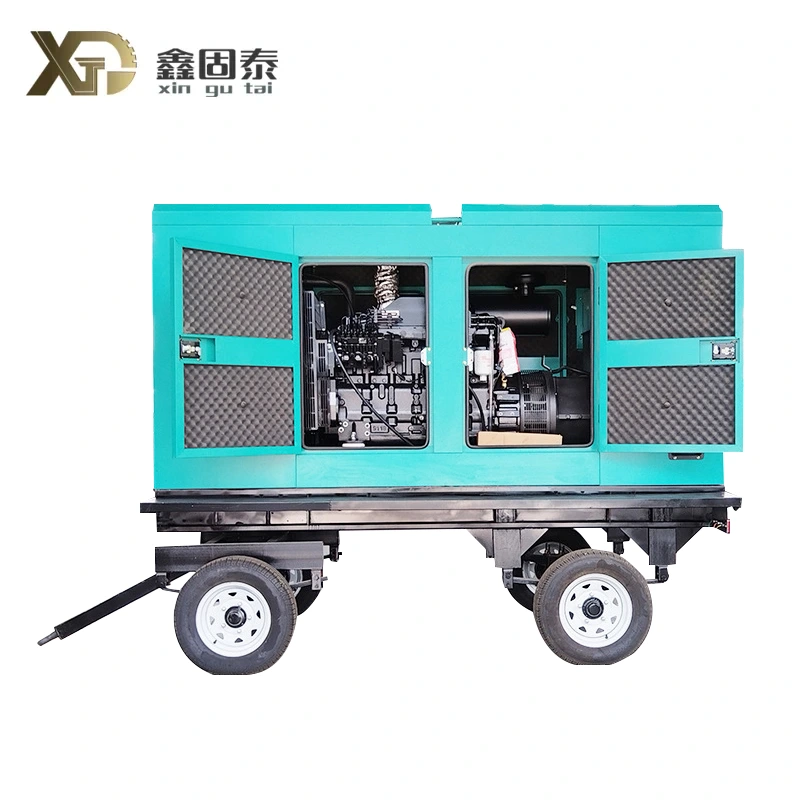

Cummins Socraigh Gineadóir Díosail Chiúin

Is é atá i gceist le Gutai Innealra ná déantúsóir gineadóir díosail tost na Síne Cummins. Cummins Tá struchtúr foriomlán níos dlúithe ag tacar gineadóir díosail adh, muffler cothrománach mór, agus torann níos ísle.

Seol Fiosrúchán

Cur síos ar an Táirge

Is ceannaire gairmiúil é Gutai Innealra an tSín Cummins Cummins Gineadóir Díosail Chiúin Socraigh Monaróir le praghas ardchaighdeáin agus réasúnta. Cummins Is trealamh soláthair cumhachta íseal-torainn, ardfheidhmíochta é tacar gineadóir díosail adh. Cummins Tá tacar gineadóir díosail adh go bhfuil sé beag i méid, solas i meáchan agus dlúth i struchtúr. Tá an clúdach fuaimdhíonach go hálainn i gcruth, éasca le dí -chomhdhlúthú agus cóimeáil, agus tá an t -aonad éasca a oibriú. The matching brand-name diesel engine and brand-name generator and fully sealed automatic voltage regulator have excellent performance and reliable operation.

Cummins Gineadóir Díosail Chiúin Socraigh Gnéithe Táirge:

1. Is féidir tacar gineadóir ciúin Cummins a chrochadh ar bharr an bhosca;

2. Tá an struchtúr foriomlán níos dlúithe, le muffler mór cothrománach agus torann níos ísle;

3. The traditional design of air intake at the bottom of the box is cancelled to prevent the inhalation of debris and dust, and increase the air intake and exhaust area;

4. Tá bosca lasc aschuir neamhspleách ar an mbosca adh, atá áisiúil do nasc cábla (atá oiriúnach go háirithe do thógáil innealtóireachta agus do chíos);

5. Tá leibhéal uiscedhíonach agus friotaíochta aimsire níos airde sa bhosca ciúin.

Tacair Gineadóir Díosail faoi thiomáint ag Cummins Engine (50Hz/1500rpm)

Samhail genset	Aschur genset				Sonraí teicniúla an innill díosail
	Bonn		Feilte		Samhail innill	Sorcóir	Díláraithe	Tomhaltas breosla	Ailtrán	Méid Cineál Ciúin	Ualach
	KW	KVA	KW	KVA	Samhail innill	L	L	L/H.	Ailtrán	mm	Kg
XGT-22	16	20	18	22	4B3.9-G11	4L	3.9	6.5	XGTW-22-4	2200x900x1250	1100
XGT-30	22	27	24	30	4B3.9-G1	4L	3.9	7.1	XGTW-30-4	2200x900x1250	1150
XGT-30	22	27	24	30	4B3.9-G2	4L	3.9	6.7	XGTW-30-4	2200x900x1250	1150
XGT-33	24	30	26	33	4B3.9-G12	4L	3.9	8	XGTW-33-4	2250x1000x1250	1200
XGT-44	32	40	36	44	4BT3.9-G1	4L	3.9	10	XGTW-44-4	2250x1000x1500	1230
XGT-44	32	40	36	44	4BT3.9-G2	4L	3.9	9.3	XGTW-44-4	2250x1000x1500	1230
XGT-55	40	50	44	55	4BTA3.9-G2	4L	3.9	11.5	XGTW-55-4	2350x1000x1500	1340
XGT-66	48	60	53	66	4BTA3.9-G2	4L	3.9	11.5	XGTW-66-4	2450x1000x1550	1400
XGT-86	64	80	70	88	4BTA3.9-G11	4L	3.9	20.1	XGTW-86-4	2450x1000x1500	1400
XGT-100	72	90	80	100	6BT5.9-G1	6L	5.9	22	XGTW-100-4	3000x1100x1600	1683
XGT-110	80	100	88	110	6bt5.9-g2	6L	5.9	22	XGTW -10-4	3000x1100x1600	1683
XGT-132	96	120	106	132	6bta5.9-g2	6L	5.9	27	XGTW-132-4	3000x1100x1600	1700
XGT-150	110	138	121	151	6as5.9-g2	6L	5.9	30	XGTW-50-4	3100x1100x1600	1810
XGT-180	130	163	143	179	6backs5.9-g12	6L	5.9	32.5	XGTW-180-4	3100x1100x1650	1894
XGT-200	150	188	165	206	6cta8.3-g1	6L	8.3	42	XGTW-200-4	3250x1120x1850	2393
XGT-200	150	188	165	206	6cta8.3-g2	6L	8.3	42	XGTW-200-4	3250x1120x1850	2393
XGT-220	160	200	176	220	6ctaa8.3-g2	6L	8.3	45.4	XGTW-220-4	3300x1200x1850	2350
XGT-275	200	250	220	275	6ltaAa8.9-g2	6L	8.9	53	XGTW-275-4	3600x1250x1900	2450
XGT-290	210	263	231	290	6ltaAa8.9-G3	6L	8.9	53	XGTW-290-4	3700x1250x1900	2887
XGT-350	254	318	280	350	6ltaAa9.5-g1	6L	9.5	70	XGTW-350-4	3700x1250x1900	2900
XGT-400	288	360	320	400	QSZ13-G6	6L	13	81	XGTW-400-4	4400x1700x2390	4350
XGT-413	300	375	330	413	6ZTAA13-G3	6L	13	79	XGTW-413-4	4400x1700x2390	4350
XGT-440	320	400	352	440	QSZ13-G7	6L	13	85	XGTW-440-4	4400x1700x2390	4350
XGT-480	350	438	384	480	6ZTAA13-G2	6L	13	90	XGTW-480-4	4500x1700x2390	4420
XGT-480	350	438	384	480	6ZTAA13-G4	6L	13	98	XGTW-480-4	4500x1700x2390	4420
XGT-480	350	438	384	480	QSZ13-G2	6L	13	70	XGTW-480-4	4500x1700x2390	4520
XGT-500	360	450	400	500	QSZ13-G5	6L	13	108	XGTW-500-4	4500x1700x2390	4520
XGT-550	400	500	440	550	QSZ13-G3	6L	13	102	XGTW-550-4	4500x1700x2390	4520
XGT-275	200	250	220	275	MTA11-G2	6L	10.8	49.9	XGTW-275-4	3750x1400x2100	3700
XGT-275	200	250	220	275	NT8555-GA	6L	13	53	XGTW-275-4	3900x1400x2100	3785
XGT-275	200	250	220	275	NTA855-G1	6L	14	67.6	XGTW-275-4	3900x1400x2100	3850
XGT-303	220	275	242	303	NTA855-G1A	6L	14	61.3	XGTW-303-4	3950x1400x2100	3950
XGT-344	250	313	275	344	MTAA11-G3	6L	10.8	62	XGTW-344-4	3950x1450x2100	4000
XGT-344	250	313	275	344	NTA855-G1B	6L	14	64.9	XGTW-344-4	3950x1400x2100	4000
XGT-344	250	313	275	344	NTA855-G2	6L	14	61	XGTW-344-4	3950x1400x2100	4000
XGT-378	275	344	303	378	NTA855-G2A	6L	14	71.9	XGTW-378-4	4200x1400x2100	4200
XGT-385	280	350	308	385	NTA855-G4	6L	14	75.3	XGTW-385-4	4200x1400x2100	4200
XGT-413	300	375	330	413	NTAA855-G7	6L	14	85.4	XGTW-413-4	4300x1450x2250	4350
XGT-413	300	375	330	413	KTA19-G2	6L	19	83	XGTW-413-4	4450x1700x2450	4650
XGT-440	320	400	352	440	QSNT-G3	6L	14	84.2	XGTW-440-4	4500x1700x2390	4800
XGT-440	320	400	352	440	NTAA855-G7A	6L	14	89.2	XGTW-440-4	4400x1450x2250	4400
XGT-500	360	450	400	500	KTA19-G3	6L	19	97	XGTW-500-4	4500x1700x2450	4800
XGT-550	400	500	440	550	KTA19-G3A	6L	19	107	XGTW-550-4	4500x1700x2450	4800
XGT-550	400	500	440	550	KTA19-G4	6L	19	107	XGTW-550-4	4500x1700x2500	4900
XGT-578	420	525	462	578	KTAA19-G5	6L	19	113	XGTW-578-4	4800x1800x2500	5500
XGT-633	460	575	506	633	Ktaia19-G6	6L	19	118.5	XGTW-633-4	4800x1800x2500	5500
XGT-650	472	590	520	650	KTA19-G8	6L	19	144	XGTW-650-4	4800x1800x2500	5600
XGT-715	520	650	572	715	QSK19-G4	6L	18.9	147	XGTW-715-4	20Gp	6610
XGT-688	500	625	550	688	Ktaa19-g6a	6L	19	149.5	XGTW-688-4	4900x1800x2500	5800
XGT-688	500	625	550	688	Kt38-	V12	38	140	XGTW-688-4	20 uair	8400
XGT-788	570	713	630	788	KT38-G1	V12	38	140	XGTW-788-4	20 uair	8500
XGT-800	580	725	640	800	KT38-for	V12	38	158	XGTW-800-4	20 uair	8550
XGT-825	600	750	660	825	KTA38-G2	V12	38	167	XGTW-825-4	20 uair	8600
XGT-880	640	800	704	880	KTA38-G2B	V12	38	170	XGTW-880-4	20 uair	8700
XGT-1000	728	910	800	1000	KTA38-G2A	V12	38	191	XGTW-1000-4	20 uair	8850
XGT-1100	800	1000	880	1100	KTA38-G5	V12	38	209	XGTW-1100-4	4hc	11150
XGT-1250	900	1125	1000	1250	KTA38-G9	V12	38	256	XGTW-1250-4	4hc	11210
XGT-1375	1000	1250	1100	1375	QSK38-G5	V12	37.7	274	XGTW-1375-4	4hc	13100
XGT-1375	1000	1250	1100	1375	KTA50-G3	V16	50.3	261	XGTW-1375-4	4hc	13140

Tacair Gineadóir Díosail faoi thiomáint ag Cummins Engine (60Hz/1800rpm）

Samhail genset	Aschur genset				Sonraí teicniúla an innill díosail
	Bonn		Feilte		Samhail innill	Sorcóir	Díláraithe	Tomhaltas breosla	Ailtrán	Méid Cineál Ciúin	Ualach
	KW	KVA	KW	KVA	Samhail innill	L	L	L/H.	Ailtrán	mm	Kg
XGT-28	20	25	22	28	4B3.9-G11	4L	3.9	7.1	XGTW-28-4	2200x900x1250	1100
XGT-33	24	30	26	33	4B3.9-G1	4L	3.9	6.47	XGTW-33-4	2280x1000x1300	1220
XGT-33	24	30	26	33	4B3.9-G2	4L	3.9	8.6	XGTW-33-4	2280x1000x1300	1220
XGT-39	28	35	31	39	4B3.9-G12	4L	3.9	9.4	XGTW-39-4	2250x1000x1250	1250
XGT-47	34	43	37	47	4BT3.9-G1	4L	3.9	9.06	XGTW-47-4	2280x1000x1300	1280
XGT-47	34	43	37	47	4bt39g2	4L	3.9	10.7	XGTW-47-4	2280x1000x1300	1280
XGT-69	50	63	55	69	4BTA3.9-G2	4L	3.9	17.4	XGTW-69-4	2350x1000x1550	1340
XGT-110	80	100	88	110	6BT5.9-G1	6L	5.9	21.45	XGTW -10-4	3050x1100x1600	1683
XGT-110	80	100	88	110	6bt5.9-g2	6L	5.9	28.5	XGTW -10-4	3050x1100x1600	1683
XGT-140	100	125	110	138	6bta5.9-g2	6L	5.9	31	XGTW-140-4	3050x1100x1600	1700
XGT-165	120	150	132	165	6as5.9-g2	6L	5.9	34	XGTW-165-4	3250x1100x1600	1810
XGT-176	128	160	141	176	6backs5.9-g12	6L	8.3	38	XGTW-176-4	3300x1100x1650	1894
XGT-206	150	188	165	206	6cta8.3-g1	6L	8.3	39.31	XGTW-206-4	3400x1120x1800	2393
XGT-206	150	188	165	206	6cta8.3-g2	6L	8.9	44	XGTW-206-4	3400x1120x1800	2393
XGT-250	180	225	198	248	6ctaa8.3-g2	6L	8.9	49	XGTW-250-4	3500x1150x1800	2350
XGT-275	200	250	220	275	6ltaAa8.9-g2	6L	8.9	59	XGTW-275-4	3600x1250x1900	2450
XGT-275	200	250	220	275	6ltaAa8.9-G3	6L	8.9	62	XGTW-275-4	3700x1250x1900	2887
XGT-360	260	325	286	358	6ltaAa9.5-g1	6L	9.5	76	XGTW-360-4	3700x1250x1900	2900
XGT-303	220	275	242	303	NT8555-GA	6L	14	66.52	XGTW-303-4	3950x1450x2100	3785
XGT-344	250	313	275	344	NTA855-G1A	6L	14	64.48	XGTW-344-4	4100x1450x2100	3950
XGT-385	280	350	308	385	NTA855-G1B	6L	14	77.33	XGTW-385-4	4100x1450x2100	4000
XGT-440	320	400	352	440	NTA855-G3	6L	14	88.45	XGTW-440-4	4400x1450x2250	4200
XGT-495	360	450	396	495	KTA19-G2	6L	18.9	98	XGTW-495-4	4650x1700x2450	4650
XGT-550	400	500	440	550	KTA19-G3	6L	18.9	111	XGTW-550-4	4850x1700x2450	4800
XGT-619	450	563	495	619	KTA19-G3A	6L	18.9	121	XGTW-619-4	4850x1700x2450	4800
XGT-660	480	600	528	660	KTAA19-G5	6L	18.9	134	XGTW-660-4	5150x1800x2500	5500
XGT-756	550	688	605	756	Ktaa19-g6a	6L	18.9	145	XGTW-756-4	5250x1800x2500	5800
XGT-825	600	750	660	825	KTA38-G	V12	37.8	154	XGTW-825-4	20Gp	8400
XGT-1001	728	910	801	1001	KTA38-G2	V12	37.8	204	XGTW-1001-4	20Gp	8600
XGT-1100	800	1000	880	1100	KTA38-G2A	V12	37.8	225	XGTW-1100-4	20Gp	8850
XGT-1238	900	1125	990	1238	KTA38-G4	V12	37.8	245	XGTW-1238-4	4hc	11150
XGT-1375	1000	1250	1100	1375	KTA38-G9	V12	37.8	259.87	XGTW-1375-4	4hc	11210
XGT-1513	1100	1375	1210	1513	KTA50-G3	V16	37.8	291	XGTW-1513-4	4hc	13100
XGT-I733	1260	1575	1386	1733	KTA50-G9	V16	37.8	331	XGTW-1733-4	4hc	13140

Tacair ghineadóir díosail faoi thiomáint ag Jiangxi Isuzu Engine (60Hz/1800rpm)

Samhail genset	Aschur genset				Sonraí teicniúla an innill díosail
	Bonn		Feilte		Samhail innill	Sorcóir	Díláithriú	Tomhaltas breosla	Ailtrán	Méid Cineál Ciúin	Ualach
	KW	KVA	KW	KVA	Samhail innill	L	L	L/H.	Ailtrán	mm	Kg
XGT-28	20	25	22	28	Je493db 03	4L	2.771	5.5	XGTW-28-4	2100x880x1100	850
XGT-33	24	30	26	33	JE493DB-01	4L	2.771	6.7	XGTW-33-4	2170x880x1100	860
XGT-38	27.5	34	30	38	JE493ZDB 03	4L	2.771	7.4	XGTW-38-4	2170x880x1100	1050
XGT-51	37.5	47	41	51	JE493ZLDB-01	4L	2.771	9.6	XGTW-51-4	2280x950x1250	1050
