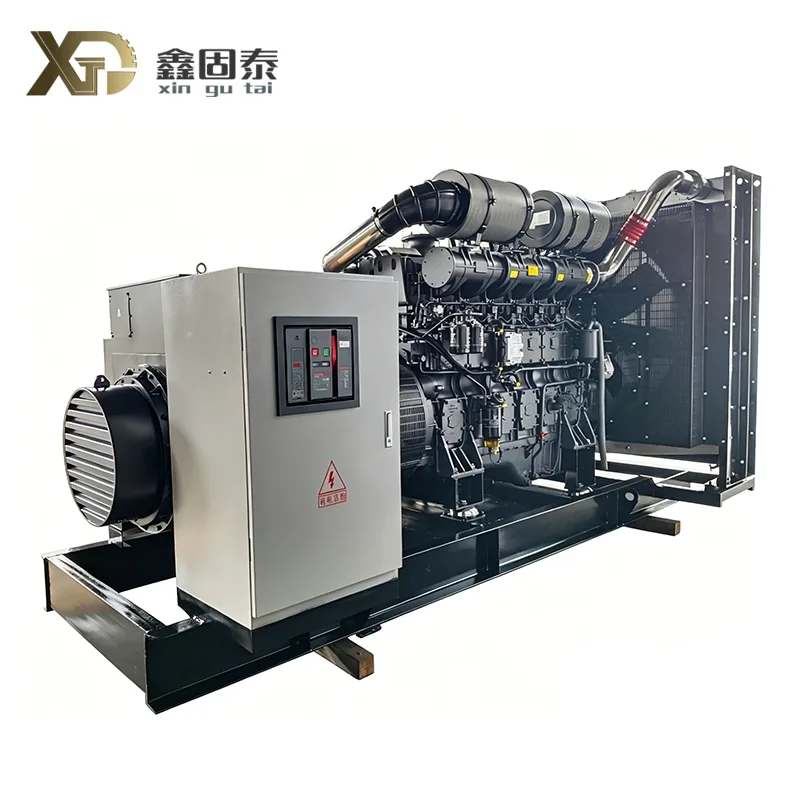

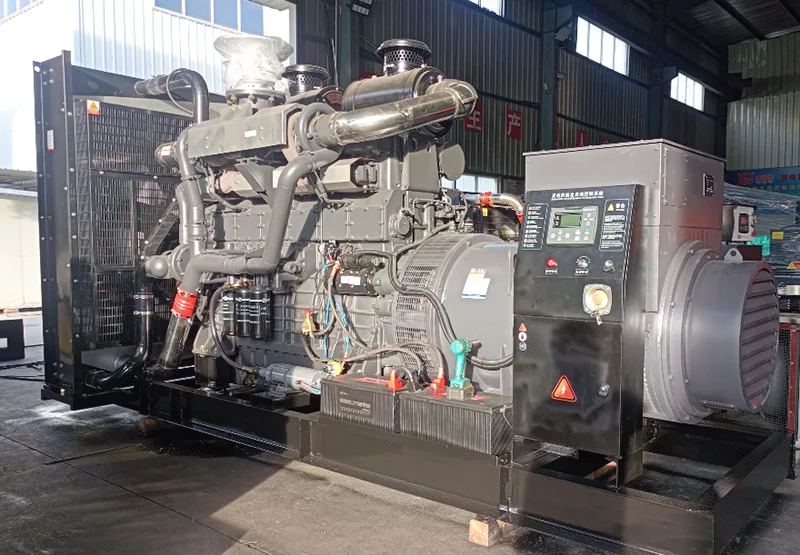

Sraith Gineadóir Díosail Cumhachta Sraith Shangchai
Is é an t-inneall díosail 135 sraith de Shraith Gineadóir Díosail Cumhachta Sraith Shangchai arna dtáirgeadh ag Shanghai New Power Automotive Technology Co., Ltd sa tSín an tsamhail is luaithe a forbraíodh agus is mó a úsáidtear sa tSín. Tá an teicneolaíocht aibí, is furasta na páirteanna breise a cheannach, agus clúdaíonn an raon cumhachta 8KW-2000KW. Tá ceithre shorcóir ina seasamh, sé shorcóir ina seasamh agus 12 inneall sorcóir i gcruth V.
Costais oibriúcháin íseal, atá neamhdhíobhálach don chomhshaol agus íseal-torann, comhlíontach agus saor ó imní. Cumhacht láidir, ídiú breosla íseal, iontaofacht ard, inoiriúnaitheacht leathan, rialú leictreonach Chliste, páirteanna éasca le ceannach, seirbhís iar-díolacháin chuimsitheach, cáil chobhsaí i dtrádáil eachtrach agus radhairc thionsclaíocha. Fáilte go dtí Socraigh Gineadóir Díosail Cumhachta Sraith Shanghai a cheannach uainn.
Sraith gineadóir díosail 1000KW
Sraith gineadóir díosail 800KW
Sraith gineadóir díosail 500KW
Sraith gineadóir díosail 400KW
Príomhpharaiméadair theicniúla （50HZ/Caighdeán Astaíochta Náisiúnta na Síne II）
|
Genset Múnla |
Cumhacht Genset Coitianta/Cúltaca(KW) |
Cumhacht Engin Coitianta/Cúltaca (Kw) |
Múnla Engin |
Reatha （A） |
Ráta Tomhaltas Breosla （g/kw·h） |
Easáiteach (L)
|
Bealadh Cumas ola |
Sorcóir Q·ty |
Bore × Stróc （mm） |
cóimheas comhbhrú |
méid imlíne （mm） |
Meáchan （kg） |
|
XGT-12 |
12/13.2 |
16/18 |
4Z2.3-G21 |
21.6 |
240 |
2.27 |
5.5 |
4 |
85×100 |
18:1 |
1500×600×1000 |
400 |
|
XGT-16 |
16/18 |
22/24 |
4Z2.7-G21 |
28.8 |
225 |
2.7 |
6.5 |
4 |
90×105 |
18.5:1 |
1500×650×1100 |
500 |
|
XGT-20 |
20/22 |
27/30 |
4Z3.0-G21 |
36 |
228 |
3 |
6.5 |
4 |
98×115 |
18.5:1 |
1550×650×1100 |
550 |
|
XGT-25 |
25/27.5 |
32/35 |
4Z3.2-G21 |
45 |
225 |
3.2 |
6.5 |
4 |
98×105 |
18.5:1 |
1550×650×1100 |
600 |
|
XGT-32 |
32/35 |
39/44 |
4ZT3.2-G21 |
57.6 |
220 |
3.2 |
6.5 |
4 |
98×105 |
18.5:1 |
1600×890×1200 |
770 |
|
XGT-40 |
40/44 |
49/54 |
4ZT3.5-G21 |
72 |
210 |
3.5 |
6.5 |
4 |
98×115 |
18.5:1 |
1600×750×1200 |
780 |
|
XGT-50 |
50/55 |
60/66 |
4ZT4.1-G21 |
90 |
217 |
4.1 |
6.5 |
4 |
105×118 |
18:1 |
1600×750×1200 |
790 |
|
XGT-55 |
55/60 |
64/70 |
4ZTAA4.1-G21 |
99 |
209 |
4.1 |
6.5 |
4 |
105×118 |
18:1 |
1650×750×1200 |
795 |
|
XGT-64 |
64/70 |
78/86 |
SC4H115D2 |
115.2 |
195 |
4.3 |
11-13 |
4 |
105×124 |
17.3:1 |
2000×700×1300 |
900 |
|
XGT-80 |
80/90 |
95/105 |
SC4H140D2 |
144 |
195 |
4.3 |
11-13 |
4 |
105×124 |
16:1 |
2000×830×1250 |
1040 |
|
XGT-90 |
90/100 |
105/116 |
SC4H160D2 |
162 |
195 |
4.3 |
11-13 |
4 |
105×124 |
16:1 |
2100×830×1250 |
1180 |
|
XGT-100 |
100/110 |
120/132 |
SC4H180D2 |
180 |
195 |
4.3 |
11-13 |
4 |
185×200 |
16:1 |
2150×850×1250 |
1200 |
|
XGT-100 |
100/110 |
120/130 |
SC7H180D2 |
180 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2150×850×1250 |
1300 |
|
XGT-120 |
120/132 |
138/152 |
SC7H205D2 |
216 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2400×850×1400 |
1400 |
|
XGT-130 |
130/145 |
150/165 |
SC7H220D2 |
234 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2400×850×1400 |
1450 |
|
XGT-135 |
135/150 |
154/170 |
SC7H230D2 |
243 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2400×950×1400 |
1550 |
|
XGT-150 |
150/165 |
168/185 |
SC7H250D2 |
270 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2500×960×1400 |
1580 |
|
XGT-160 |
160/180 |
185/204 |
SC8D280D2 |
288 |
200 |
8.3 |
15-19 |
6 |
114×135 |
18:1 |
2600×1000×1400 |
1600 |
|
XGT-180 |
180/200 |
208/228 |
SC9D310D2 |
324 |
200 |
8.9 |
15-19 |
6 |
114×144 |
18:1 |
2600×970×1550 |
1700 |
|
XGT-200 |
200/220 |
228/225 |
SC9D340D2 |
360 |
198 |
8.9 |
22-25 |
6 |
114×144 |
16.5:1 |
2600×1060×1550 |
1870 |
|
XGT-200 |
200/220 |
236/260 |
SC10E350D2 |
360 |
192 |
10.4 |
33-36 |
6 |
128×135 |
17:1 |
2900×1050×1600 |
2000 |
|
XGT-220 |
220/250 |
255/280 |
SC10E380D2 |
396 |
192 |
10.4 |
33-36 |
6 |
128×135 |
17:1 |
3000×1050×1700 |
2150 |
|
XGT-250 |
250/280 |
280/308 |
SC12E420D2 |
450 |
192 |
11.8 |
33-36 |
6 |
128×153 |
17:1 |
3000×1160×1700 |
2350 |
|
XGT-280 |
280/300 |
307/338 |
SC12E460D2 |
504 |
192 |
11.8 |
33-36 |
6 |
128×153 |
17:1 |
3000×1160×1700 |
2380 |
|
XGT-290 |
290/320 |
323/355 |
SC12E480D2 |
522 |
192 |
11.8 |
33-36 |
6 |
128×153 |
17:1 |
3100×1160×1700 |
2650 |
|
XGT-300 |
300/330 |
339/373 |
SC13E500D2 |
540 |
192 |
12.8 |
33-36 |
6 |
130×161 |
17:1 |
3200×1200×1750 |
2800 |
|
XGT-320 |
320/360 |
368/405 |
SC13E550D2 |
576 |
192 |
12.8 |
33-36 |
6 |
130×161 |
17:1 |
3000×1160×1700 |
2590 |
|
XGT-250 |
250/280 |
280/308 |
SC13G420D2 |
450 |
205 |
12.88 |
33-41 |
6 |
135×150 |
15.75:1 |
3000×1160×1700 |
2480 |
|
XGT-300 |
300/330 |
330/373 |
SC15G500D2 |
540 |
205 |
14.2 |
33-41 |
6 |
135×165 |
15.55:1 |
3000×1270×1700 |
2780 |
|
XGT-360 |
360/400 |
405/445.5 |
SC25G610D2 |
648 |
205 |
25.8 |
55-65 |
12 |
135×150 |
16:1 |
3000×1160×1700 |
3900 |
|
XGT-400 |
400/450 |
459/505 |
SC25G690D2 |
720 |
205 |
25.8 |
55-65 |
12 |
135×150 |
16:1 |
3500×1450×2200 |
4100 |
|
XGT-450 |
450/500 |
505/560 |
SC27G755D2 |
810 |
205 |
26.6 |
55-65 |
12 |
135×155 |
16:1 |
3500×1450×2200 |
4200 |
|
XGT-500 |
500/550 |
561/610 |
SC27G830D2 |
900 |
205 |
26.6 |
55-65 |
12 |
135×155 |
16:1 |
3500×1500×2200 |
4300 |
|
XGT-550 |
550/600 |
602/662 |
SC27G900D2 |
990 |
205 |
26.6 |
55-65 |
12 |
135×155 |
16:1 |
3500×1500×2200 |
4300 |
|
XGT-600 |
600/660 |
660/726 |
SC33W990D2 |
1080 |
205 |
32.8 |
75-100 |
6 |
180×215 |
15:1 |
4500×1600×2150 |
5200 |
|
XGT-700 |
700/780 |
782/860 |
SC33W1150D2 |
990 |
205 |
32.8 |
75-100 |
6 |
180×215 |
15:1 |
4600×1800×2400 |
5900 |
Príomhpharaiméadair theicniúla （50HZ/Caighdeán Astaíochta Náisiúnta na Síne III）
| GensetModel | Genset PowerCommon/Cúltaca(KW) | Engin PowerCommon/Cúltaca （Kw） | Múnla Engin | Reatha （A） | Ráta Tomhaltas Breosla (g/kw·h） | Easáiteach (L) | Cumas LubricatingOil | SorcóirQ·ty | Bore × Stróc （mm） | cóimheas comhbhrú | méid imlíne （mm） | Meáchan （kg） |
| XGT-8 | 8/8.8 | 10/11 | 3Z1.1-G42 | 144 | 245 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 300 |
| XGT-13 | 13/14.3 | 16.8/18.5/3000 | 3Z1.1-G41 | 423.4 | 250 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 360 |
| XGT-10 | 10/11 | 12.8/14.1 | 3ZT1.1-G42 | 18 | 238 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 320 |
| XGT-20 | 20/22 | 25/27/3000 | 3ZT1.1-G41 | 36 | 241 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 405 |
| XGT-12 | 12/13.2 | 16/18 | 4Z2.9-G43 | 21.6 | 230 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1400×600×1000 | 470 |
| XGT-16 | 16/18 | 22/24 | 4Z2.9-G42 | 28.8 | 228 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1400×600×1000 | 500 |
| XGT-20 | 20/22 | 27/30 | 4Z2.9-G41 | 36 | 228 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1400×600×1000 | 550 |
| XGT-12 | 12/13.2 | 16/18 | 4Z2.9-G430 | 21.6 | 235 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1500×650×1100 | 490 |
| XGT-16 | 16/18 | 22/24 | 4Z2.9-G420 | 28.8 | 230 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1500×650×1100 | 520 |
| XGT-20 | 20/22 | 27/30 | 4Z2.9-G410 | 36 | 230 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1500×650×1100 | 570 |
| XGT-25 | 25/27.5 | 32/35 | 4Z3.2-G42 | 45 | 220 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1500×700×1100 | 590 |
| XGT-30 | 30/33 | 36/40 | 4Z3.2-G41 | 54 | 220 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1500×700×1100 | 620 |
| XGT-32 | 32/35 | 39/44 | 4ZTAA3.2-G33 | 57.6 | 220 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1600×750×1200 | 650 |
| XGT-40 | 40/44 | 49/54 | 4ZTAA3.2-G32 | 72 | 215 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1600×750×1200 | 670 |
| XGT-55 | 55/60 | 64/70 | 4ZTAA3.2-G31 | 99 | 215 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1600×750×1200 | 700 |
| XGT-60 | 60/66 | 74/81 | 4ZTAA3.5-G31 | 108 | 210 | 3.5 | 6.5 | 4 | 98×115 | 17.5:1 | 1600×750×1200 | 950 |
| XGT-20 | 20/22 | 27/30 | 4RTAA2.8-G39 | 36 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1700×850×1200 | 750 |
| XGT-30 | 30/33 | 38/42 | 4RTAA2.8-G31 | 54 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1800×850×1250 | 800 |
| XGT-40 | 40/44 | 51/56 | 4RTAA2.8-G32 | 72 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1800×850×1250 | 850 |
| XGT-50 | 50/55 | 62/68 | 4RTAA2.8-G37 | 90 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1900×850×1250 | 900 |
| XGT-50 | 50/55 | 62/68/3000 | 4RTAA2.8-G34 | 90 | 218 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1950×880×1300 | 920 |
| XGT-64 | 64/70 | 80/88/3000 | 4RTAA2.8-G35 | 115.2 | 218 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 2000×900×1350 | 980 |
| XGT-75 | 75/82 | 95/105/3000 | 4RTAA2.8-G38 | 135 | 218 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 2000×900×1350 | 980 |
| XGT-40 | 40/44 | 51/56 | 4HTAA4.3-G31 | 72 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1900×760×1250 | 880 |
| XGT-50 | 50/55 | 62/68 | 4HTAA4.3-G32 | 90 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1900×760×1250 | 900 |
| XGT-64 | 64/70 | 78/86 | 4HTAA4.3-G33 | 115.2 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1900×760×1250 | 900 |
| XGT-80 | 80/90 | 95/105 | 4HTAA4.3-G34 | 144 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1950×890×1250 | 950 |
| XGT-90 | 90/100 | 106/117 | 4HTAA4.3-G35 | 162 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 2100×890×1300 | 1000 |
| XGT-110 | 110/120 | 125/140 | 4HTAA4.3-G36 | 198 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 2100×890×1300 | 1050 |
| XGT-110 | 110/120 | 125/140 | 4HTAA4.5-G32 | 198 | 192 | 4.5 | 11-15 | 4 | 108×124 | 16:1 | 2150×890×1300 | 1100 |
| XGT-120 | 120/132 | 155 | 4HTAA4.5-G31 | 216 | 192 | 4.5 | 11-15 | 6 | 108×124 | 16:1 | 2150×890×1250 | 1100 |
| XGT-110 | 110/120 | 128/141 | 6HTAA6.5-G31 | 198 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2300×850×1300 | 1300 |
| XGT-120 | 120/132 | 140/155 | 6HTAA6.5-G32 | 216 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2300×850×1300 | 1300 |
| XGT-135 | 135/150 | 155/170 | 6HTAA6.5-G35 | 243 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2300×850×1300 | 1300 |
| XGT-150 | 150/165 | 168/185 | 6HTAA6.5-G33 | 270 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2350×850×1300 | 1350 |
| XGT-160 | 160/180 | 186/205 | 6HTAA6.5-G34 | 288 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2500×890×1400 | 1500 |
| XGT-180 | 180/200 | 208/228 | 6HTAA7.2-G32 | 324 | 192 | 7.2 | 15-17.5 | 6 | 108×130 | 16:1 | 2600×950×1450 | 1650 |
| XGT-200 | 200/220 | 250 | 6HTAA7.2-G31 | 360 | 192 | 7.2 | 15-17.5 | 6 | 108×130 | 16:1 | 2700×950×1500 | 2100 |
| XGT-160 | 160/180 | 185/204 | 6DTAA8.9-G31 | 288 | 192 | 8.9 | 15-19 | 6 | 114×144 | 18:1 | 2500×890×1400 | 1800 |
| XGT-180 | 180/200 | 195/228 | 6DTAA8.9-G32 | 324 | 192 | 8.9 | 15-19 | 6 | 114×144 | 18:1 | 2600×950×1400 | 1760 |
| XGT-200 | 200/220 | 230/253 | 6DTAA8.9-G33 | 360 | 192 | 8.9 | 22-25 | 6 | 114×144 | 16.5:1 | 2650×980×1470 | 2100 |
| XGT-220 | 220/250 | 255/280 | 6DTAA8.9-G34 | 396 | 192 | 8.9 | 22-25 | 6 | 114×144 | 16.5:1 | 2650×980×1470 | 2150 |
| XGT-250 | 250/280 | 280/308 | 6ETAA11.8-G32 | 450 | 190 | 11.8 | 33-41 | 6 | 128×153 | 17:1 | 2950×1150×1680 | 2580 |
| XGT-280 | 280/300 | 307/338 | 6ETAA11.8-G33 | 504 | 190 | 11.8 | 33-41 | 6 | 128×153 | 17:1 | 2900×1100×1650 | 2500 |
| XGT-300 | 300/330 | 340/380 | 6ETAA11.8-G31 | 540 | 190 | 11.8 | 33-41 | 6 | 128×153 | 17:1 | 3150×1280×1750 | 2600 |
| XGT-320 | 320/360 | 360/400 | 6ETAA12.8-G32 | 576 | 190 | 12.8 | 33-41 | 6 | 130×161 | 17:1 | 3200×1300×1750 | 2650 |
| XGT-360 | 360/400 | 401/441 | 6ETAA12.8-G31 | 648 | 190 | 12.8 | 33-41 | 6 | 130×161 | 17:1 | 3200×1300×1750 | 2700 |
| XGT-400 | 400/440 | 450/495 | 6ETAA12.8-G310 | 720 | 190 | 12.8 | 33-41 | 6 | 130×161 | 17:1 | 3200×1300×1750 | 2860 |
| XGT-400 | 400/450 | 459/505 | 12GTAA27-G34 | 720 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4000 |
| XGT-450 | 450/500 | 505/555 | 12GTAA27-G33 | 810 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4100 |
| XGT-500 | 500/550 | 565/622 | 12GTAA27-G32 | 900 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4250 |
| XGT-560 | 560/620 | 622/684 | 12GTAA27-G31 | 1008 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4300 |
| XGT-400 | 400/450 | 460/506 | 6KTAA25-G311 | 720 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3500×1500×1900 | 4000 |
| XGT-450 | 450/500 | 520/572 | 6KTAA25-G310 | 810 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3500×1500×1900 | 4080 |
| XGT-500 | 500/550 | 572/629 | 6KTAA25-G39 | 900 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3900×1600×2150 | 4300 |
| XGT-560 | 560/600 | 622/684 | 6KTAA25-G38 | 1008 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3900×1600×2150 | 4380 |
| XGT-400 | 400/450 | 460/506 | 6KTAA25-G36 | 720 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3500×1400×2150 | 4000 |
| XGT-450 | 450/500 | 520/572 | 6KTAA25-G35 | 810 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3600×1500×2000 | 4200 |
| XGT-500 | 500/550 | 572/629 | 6KTAA25-G34 | 900 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3800×1750×2150 | 4300 |
| XGT-560 | 560/600 | 622/684 | 6KTAA25-G33 | 1008 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3800×1750×2150 | 4400 |
| XGT-600 | 600/660 | 685/754 | 6KTAA25-G32 | 1080 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3900×1640×2200 | 5270 |
| XGT-660 | 660/720 | 728/800 | 6KTAA25-G31 | 1188 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 4000×1620×2150 | 5350 |
| XGT-720 | 720/800 | 820/902 | 6KTAA25-G320 | 1296 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 4000×1820×2400 | 6150 |
| XGT-800 | 800/900 | 880/968 | 6KTAA25-G321 | 1440 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 4950×1820×2400 | 6350 |
| XGT-720 | 720/800 | 818/900 | 6WTAA35-G32 | 1296 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4400×1800×2550 | 6100 |
| XGT-800 | 800/900 | 882/970 | 6WTAA35-G31 | 1440 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4400×1800×2550 | 6500 |
| XGT-900 | 900/1000 | 1018/1120 | 6WTAA35-G310 | 1620 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4700×2100×2550 | 7350 |
| XGT-1000 | 1000/1100 | 118/1230 | 6WTAA35-G311 | 1800 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4800×2100×2550 | 8500 |
| XGT-1000 | 1000/1100 | 1160/1280 | 12KTA58-G37 | 1800 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5000×2100×2550 | 8700 |
| XGT-1100 | 1100/1200 | 1280/1410 | 12KTA58-G36 | 1980 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5000×2100×2550 | 8900 |
| XGT-1250 | 1250/1350 | 1420/1560 | 12KTA58-G35 | 2250 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5200×2200×2550 | 12000 |
| XGT-1350 | 1350/1500 | 1560/1720 | 12KTA58-G34 | 2430 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 13000 |
| XGT-1500 | 1500/1650 | 1720/1890 | 12KTA58-G33 | 2700 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 14000 |
| XGT-1600 | 1600/1800 | 1850/2035 | 12KTA58-G32 | 2880 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 15000 |
| XGT-1800 | 1800/2000 | 2010/2210 | 12KTA58-G31 | 3240 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 16500 |
Taispeántas
Seirbhís iar-díola
| Táirge | Caighdeán cobhsaí-100% ráthaithe | Ba chóir do gach gineadóir a tháirgtear againn pas a fháil 12 céimeanna seiceála agus ar a laghad 4 uair an chloig tástála oibríochta, aon "NA-cháilithe" féidir le duine survival.All tacair gineadóir atá imithe trí thástáil dhian sula scaoiltear chuig an margadh, lena n-áirítear 50% ualach, 75% ualach, 100% ualach 110% ualach agus gach feidhm cosanta (stop ró-luas, teocht an uisce ard, brú ola éigeandála, ceallraí). |
| Bígí cinnte agus pacáil láidir | Déanfar gach gineadóir a phacáil ar bhealach láidir agus eacnamaíoch araon chun earraí a chinntiú go foirfe agus iad á seachadadh | |
| Am seachadta beacht | Táirgí stocáilte: Is féidir táirgí caighdeánacha gan aon cheanglas speisialta a rialú laistigh de 2 sheachtain ar tháirgí seachadta. Ar-ordú:Le "córas bainistíochta ordú daingean agus éifeachtach" is féidir am seachadta a rialú iontaofacht ama os cionn 95.7% (ba cheart iad siúd a chuirtear siar mar gheall ar chúis gan choinne a bhainistiú laistigh de 10 lá ar a mhéad) | |
| Seirbhís | Seirbhís réamhdhíola | Cumarsáid ardéifeachtúlachta & faisnéis dhílis 24 uair ar líne |
| Seirbhís iar-díola | Ráthaíocht ar feadh 12 mhí nó 1000 uair an chloig reatha (de réir cibé acu is túisce) ón dáta suiteáilte. Le linn na tréimhse ráthaíochta, cuirfimid na páirteanna spártha atá éasca le damáiste ar fáil d'fhadhbanna de bharr ár gcáilíocht táirgthe nó amhábhar, ach amháin na parsaí spártha damáiste inneall díosail de bharr oibriú mícheart an chustaiméara, Tar éis dul in éag, soláthraíonn ár gcuideachta cothabháil páirteanna spártha do gensets. |
Cáilíochtaí Cuideachta
Deimhniú Cáilíochta ISO
CCanna
1.An bhfuil do ghineadóirí fíor agus branda nua?
Freagra: Is fíor-tháirge branda nua é agus tagann sé le barántas bunaidh an mhonarcha.
2.What iad cumhacht cúltaca agus cumhacht coiteann? Cén ceann ba cheart dom a roghnú?
Freagra: Ní úsáidtear an chumhacht cúltaca ach ó am go chéile le linn bristeacha cumhachta, agus is féidir an chumhacht choitianta a úsáid go leanúnach ar feadh 24 uair an chloig. Mol corrlach 10% -20% a chur in áirithe.
3.An laghdóidh cumhacht aschuir an ghineadóra faoi choinníollacha teocht ard?
Freagra: Sea, laghdóidh sé. Go ginearálta, de réir caighdeáin tionscail, má tá an teocht chomhthimpeallach níos mó ná 40 ° C, ní mór don ghineadóir smaoineamh ar a chumas úsáide a laghdú.
4.An bhfuil deimhniú CE agat? An féidir leat cabhrú liom custaim a ghlanadh go háitiúil?
Freagra: Tá ár gcuid táirgí tar éis deimhniú cáilíochta ISO9001 agus deimhniú CE a rith. Agus is féidir leo sraith iomlán de dhoiciméid imréitigh custaim a sholáthar, mar shampla liosta pacála, sonrasc, deimhniú tionscnaimh, etc.
5.An bhfuil an gineadóir le chéile agus a sheachadadh chuig an gcalafort?
Freagra: Faoi imthosca gnáth, déantar ár gcuid táirgí a phacáistiú i mboscaí adhmaid fumigation don aonad iomlán, agus is féidir iad a shaincheapadh freisin de réir riachtanais speisialta na gcustaiméirí. Faoi imthosca gnáth, is é Xiamen Port sa tSín an calafort seachadta. Más gá, is féidir aon chalafort laistigh den tSín a úsáid freisin
6.Is leictreoir mé, ach níor shuiteáil mé meaisín chomh mór riamh roimhe seo. An soláthraíonn tú líníochtaí suiteála nó físeáin?
Freagra: Cuir leagan Béarla den lámhleabhar úsáideora, léaráid chiorcaid ar fáil, agus fiú treoir físeán gairid WhatsApp.
7.What an chainníocht íosta ordú?
Freagra: Is é 1 aonad an chainníocht íosta ordú.
8.What an modh íocaíochta?
Freagra: aistriú sreang 30% mar thaisce, agus aistriú sreang 70% le híoc roimh an loingsiú.
9.Má bhriseann an meaisín síos, cén áit ar féidir liom páirteanna a cheannach?
Freagra: Tabharfaimid go randamach sraith de phacáiste páirteanna leochaileacha (trí scagairí, gaiscéid, etc.), agus míneoimid gur féidir gabhálais ghinearálta a cheannach go háitiúil, agus is féidir gabhálais speisialta a sheoladh le DHL express
Hot Tags: Socraigh Gineadóir Díosail Cumhachta Sraith Shangchai, an tSín, Monaróir, Soláthraí, Monarcha
Catagóir Gaolmhar
Seol Fiosrúchán
Eolas teagmhála
-
Seoladh
Uimh. 55 Bóthar Xingda, Páirc Fiontraíochta Teicneolaíochta Huada, Sráid Wan'an, Dúiche Luojiang, Cathair Quanzhou
-
Teil
-
R-phost
Má tá aon fhiosrúchán agat faoi luachan nó comhoibriú, bíodh leisce ort ríomhphost a chur chugainn ag xueliqin@qzgtjx.com nó bain úsáid as an bhfoirm fiosrúcháin seo a leanas. Rachaidh ár n -ionadaí díolacháin i dteagmháil leat laistigh de 24 uair an chloig. Go raibh maith agat as do spéis inár dtáirgí.
